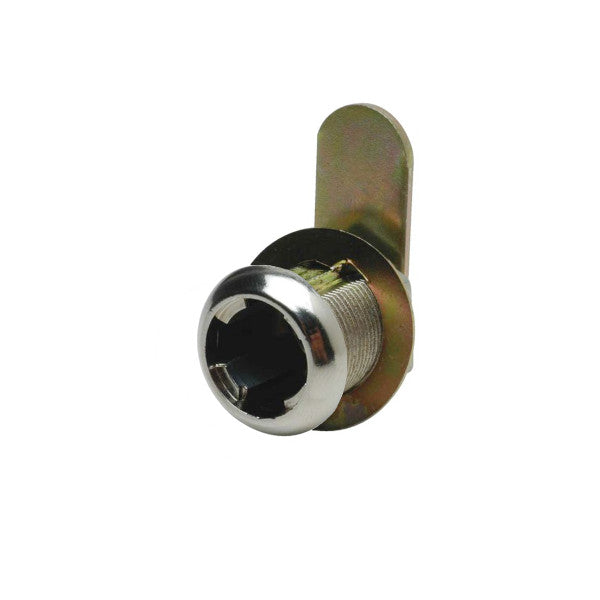

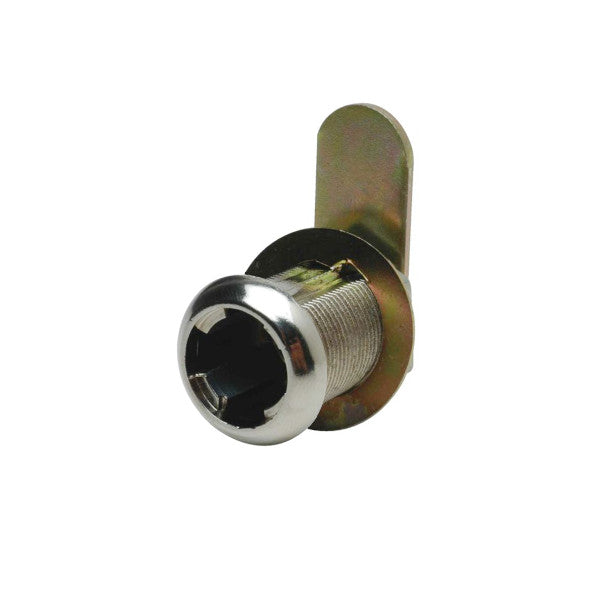

Cyber-Lock Camlock

The CL range is an extremely versatile series of cabinet locks. CL locks are manufactured in Thailand using precision German engineering. CL products feature a flexible barrel removal system offering a range of keying options. CL locks suit both metal and timber cabinets.

• CL lock range is made of diecast zinc
• This lock range has an interchangeable barrel system
• 90 degree movement
• Round face
• Key removable in both the locked and unlocked position
• Can be used with any of the Lock Focus range of cams which have a star shaped hole
• These locks are nut fixed
• 30mm cam fitted as standard
• Barrels must be ordered separately
• Chrome plate finish

• 16 mm body width
• 29.4 mm cam length
• cam lock keyed to differ and master keyed
• lock movement 180 degrees clockwise or anti clockwise to unlock
• includes 2 keys
• bright chrome finish

Insert barrel by lining up the profile on the end of the barrel and lining up with the diamond shape in the housing. When the cylinder is flush with the housing, hold the tongue down and turn the key all the way to the right, then all the way to the left and back 180 degrees, let go of the tongue and the barrel should be installed correctly with the angle of the tongue starting at the edge of the lock housing.
