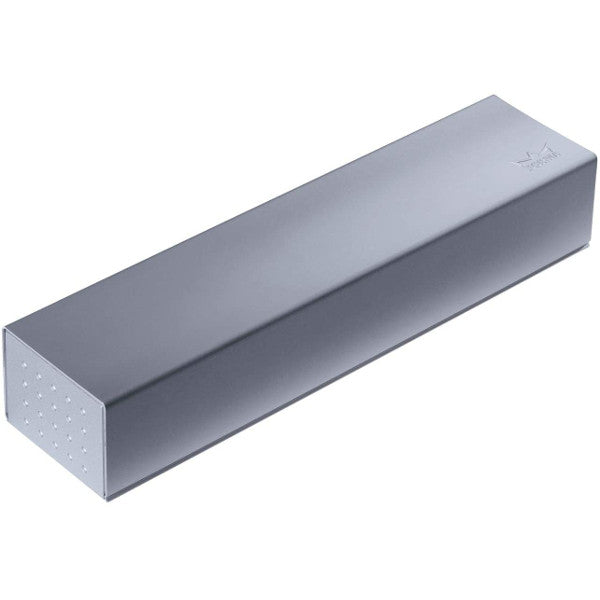

dormakaba TS93 Cam Action Door Closer

The perfect project solution for all application needs

The TS 93 cam action door closer series comprises of a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.

Accessibility

EASY OPEN Cam action technology enables doors to be manually operated with less effort than that required for conventional closers. When considering doors are used every day by the elderly, children or disabled the TS 93 constitutes an ideal solution.

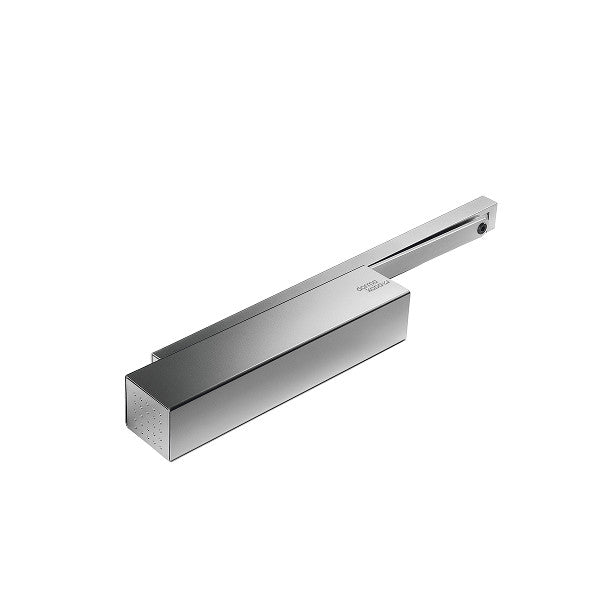

A slide channel arm assembly is required to operate the TS93 door closer. Slide channel arm assemblies are available for purchase separately.

• Variable closing force = EN 5–7
• Suitable for standard doors ≤ 1600 mm
• Suitable for external doors, outward opening.
• Suitable for fire and smoke check doors.
• Handed: Push side or pull side models available.
• Arm assembly type: Slide channel.
• Closing force variable by means of adjustment screw.
• Adjustable closing speed, latching speed & backcheck.
• Adjustable delayed action.
• Optional hold-open function.
• Weight = 5.2 kg
• Dimensions = 285 mm (L) x 62 mm (D) x 71 mm (H)
• Door closer tested to EN1154
• Hold-open devices tested to EN1155
• Door co-ordinators tested to EN1158
