McGrath Hamilton Digital Lock
By McGrath

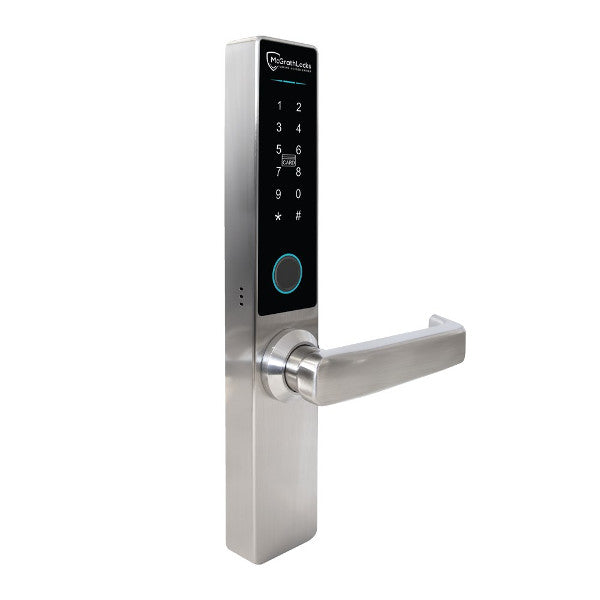

McGrath Hamilton Digital Lock

A great addition to the home, office or business, this 5 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.

Get in touch Or call us on 03 365 0298
SKU 16472
Description
Features

The HAMILTON by McGrath Locks is a sleek and stylish lock designed for the Australian market. A great addition to the home, office or business, this 5 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.



Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through pin code, RFID credential, eKeys managed via BLE and mechanical key override. By adding a McGrath Locks Wi-Fi gateway you can remotely unlock the HAMILTON from anywhere in the world using the McGrath Locks App.



The HAMILTON is designed with many features for the most demanding applications. It is supplied with an adjustable tubular latch and is also compatible with the most common Australian commercial mortice locks. The lock is fire rated up to 2 hours on E-Core and Firecore doors when installed with the McGrath Locks tubular latch or with a dormakaba MS2602 mortice lock. The HAMILTON also has a DDA compliant lever design.

  • Lock functions and access easily managed via McGrath Locks App.
  • Enrol Pin Codes, RFID credentials, Fingerprints and send eKeys to your family and visitors.
  • Passage Mode can be used to leave your door open when required.
  • Anti-peep code function stops unathorised people seeing the correct code inputted.
  • Incorrect attempt lockout.
  • Reset button can be disabled in App for additional security.
  • Audit trail within App to see who accessed your door and when.
  • Supplied with door sensor for optional door monitoring.
  • Low battery alert (within App and audible at the lock).
  • 4x AA Alkaline Batteries (not included).
  • Mechanical key override, accepts full size 570 oval cylinder.
  • USB-C emergency opening.
  • Tempered Glass Screen for extra durability.
  • Field changeable handing.

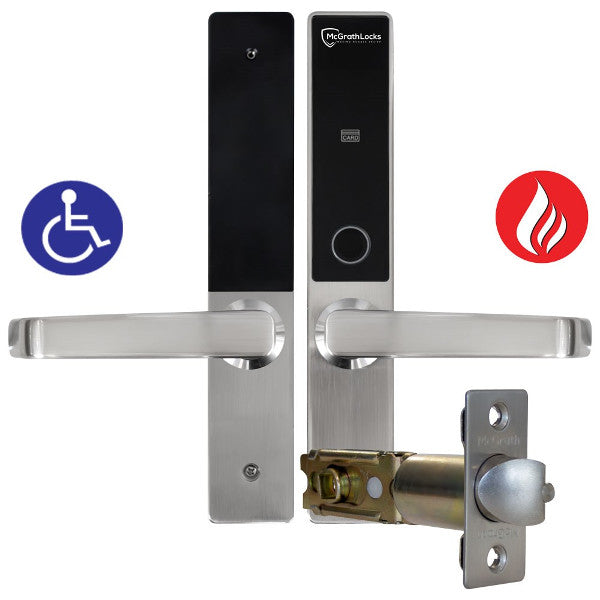

  • DDA compliant lever design to satifsy BCA AS1428.1 -2009.
  • 2 hour fire rating for E-Core and Firecore doors when fitted with approved latch / lock.
  • Compatible with most common Australian mortice locks.
  • Suits door thickness 35-54 mm.
  • IP66 on external lock housing.
  • Outside handle projection 62 mm.
  • Lock case dimensions 260 (H) x 45 (W) x 23 mm (D).

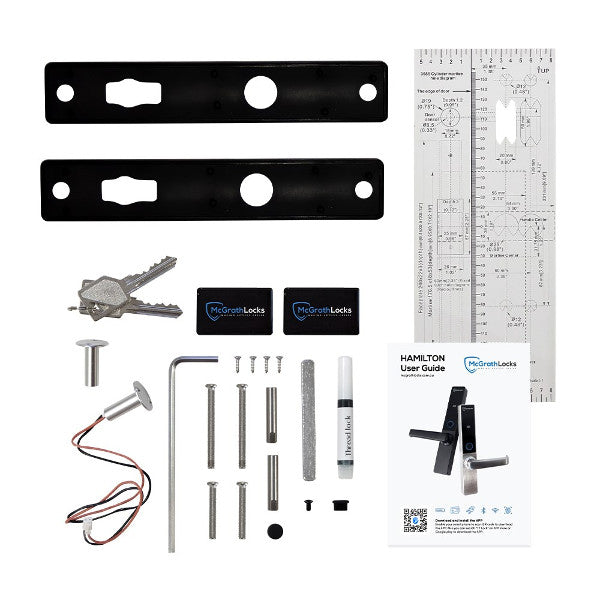

  • Supplied with an 60 -70 mm adjustable latch.

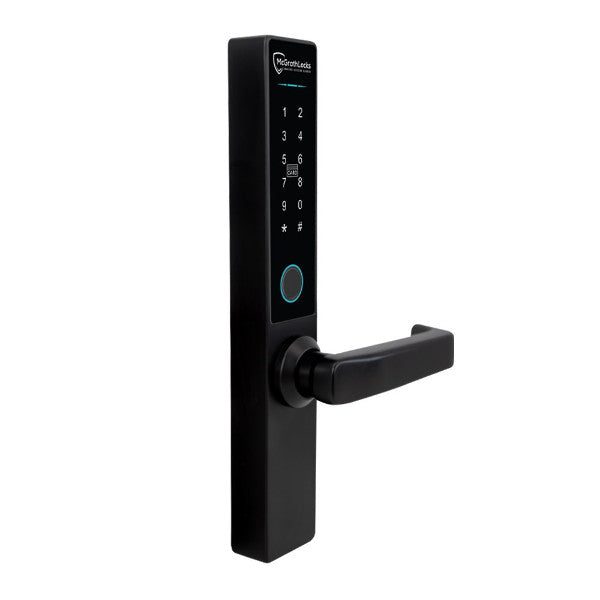

  • Finished in matt black or satin nickel.
