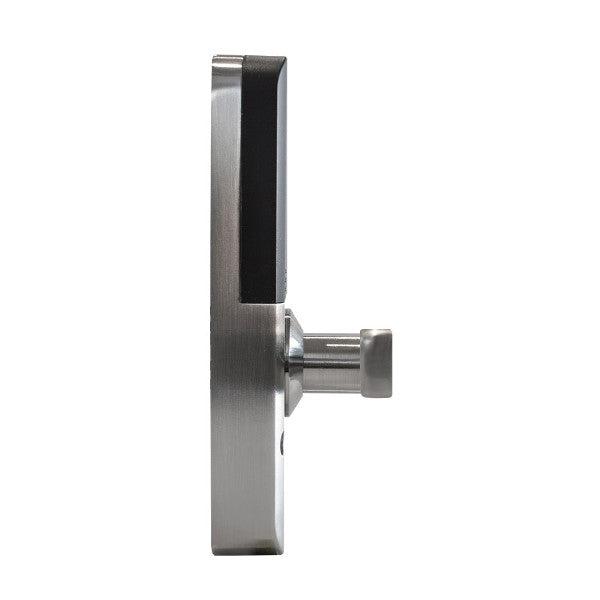

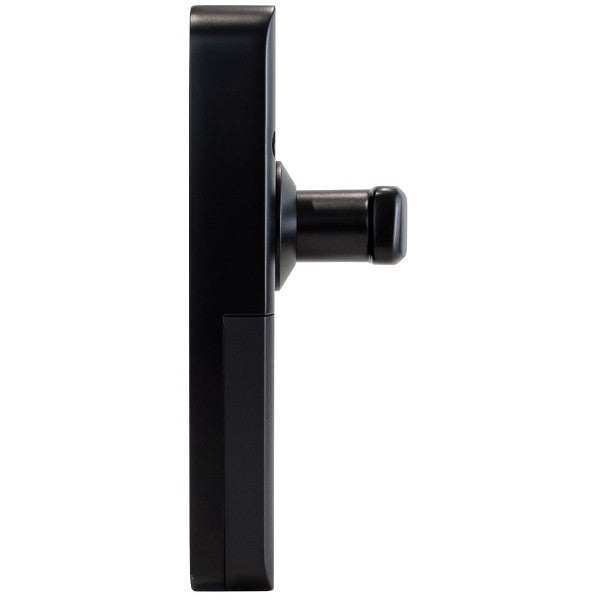

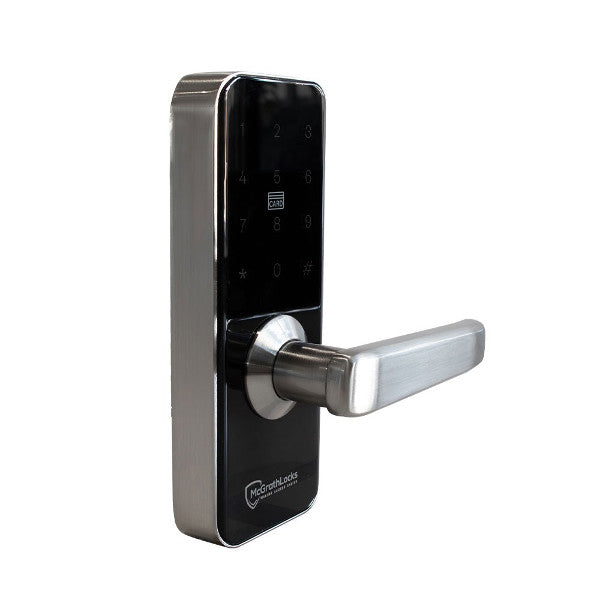

The WINDSOR by McGrath Locks is a sleek and stylish lock designed for the Australian market. A great addition to the home, office or business, this 4 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.
Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through pin code, RFID credential, eKeys managed via BLE and mechanical key override. By adding a McGrath Locks Wi-Fi gateway you can remotely unlock the WINDSOR from anywhere in the world using the McGrath Locks App.

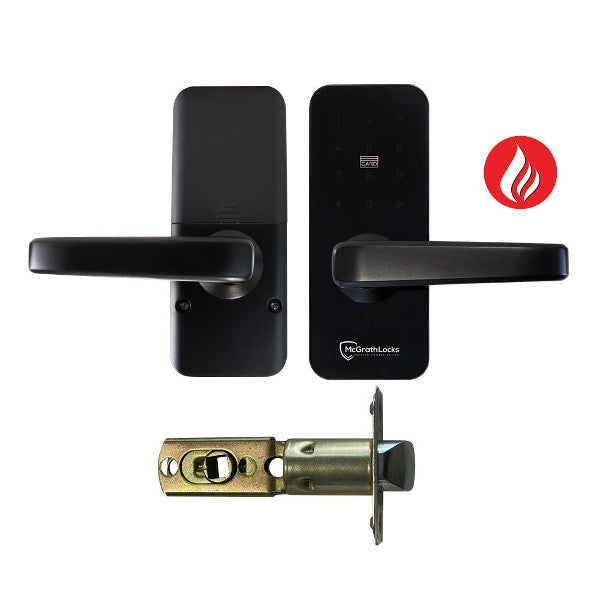

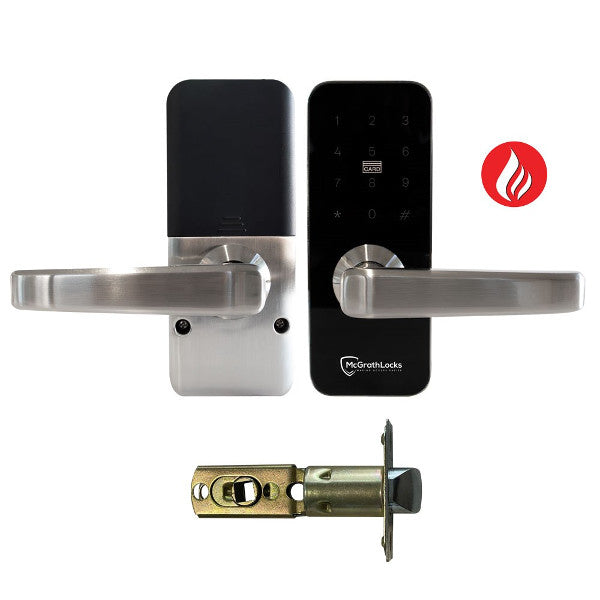

The WINDSOR is supplied with a 60/70 adjustable latch. It also suits the most common Australian mortice locks and the McGrath tubular latches. The lock has achieved a 2 hour fire rating on the Firecore and E-Core doors when used with the dormakaba MS2602 mortice lock or Lockwood 530 style tubular latch.
![]()
![]()
![]()
![]()
![]()
![]()
- Lock functions and access easily managed via McGrath Locks App.
- Enrol Pin Codes, RFID credentials and send eKeys to your family and visitors.
- Passage Mode can be used to leave your door open when required.
- Anti peep code function stops unauthorised people seeing the correct code inputted.
- Incorrect attempt lockout.
- Reset button can be disabled in App for additional security.
- Audit trail within App to see who accessed your door and when.
- Low battery alert (within App and audible at the lock).
- 4 x AA Alkaline Batteries (not included).
- Mechanical key override and USB-C emergency opening.
- Glass Screen for extra durability.
- Field changeable handing.
- 2 hour fire rating.
- Compatible with most common Australian mortice locks.
- Suits door thickness 35-54 mm.
- IP65 on external housing.
- Retrofittable with DDA compliant levers to comply with BCA AS1428.1 -2009 (Levers sold separately).
- Outside handle projection 70.6 mm (with DDA lever 73 mm).
- Lock case dimensions 180 (H) x 72 (W) x 25 mm (D).
- Finished in matt black or satin nickel.
