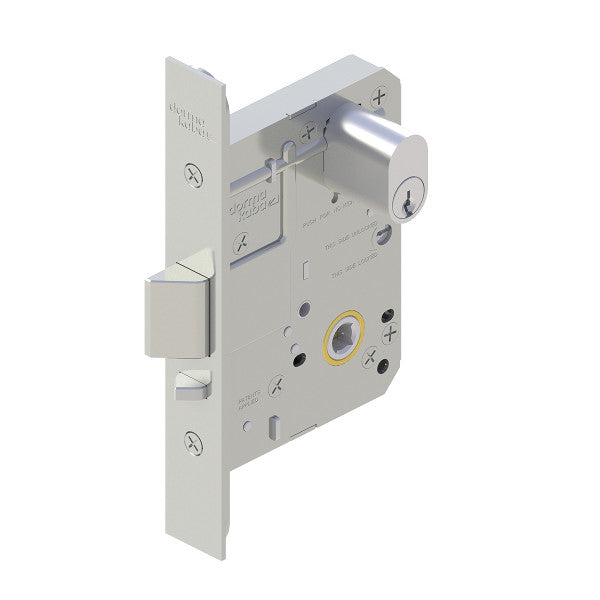

The MS2602 is a heavy duty stainless steel mortice lock, designed, engineered and built for optimal performance across a full range of applications including education, healthcare, office, retail, municipal buildings and residential projects.
The new dormakaba MS2602 mortice lock brings together the former Dorma & Kaba mortice locks into a refined mortice lock offering with improved benefits. The MS2602 is a heavy duty stainless steel mortice lock, designed, engineered and built for optimal performance across a full range of applications including education, healthcare, office, retail, municipal buildings and residential projects.
Construction The mortice case, cover and faceplate are constructed of 304 grade stainless steel providing greater security than die cast mortice locks and better corrosion resistance. Moreover, the lock spindle hubs, latchbolt, deadbolt and dead latch are constructed of high grade sintered stainless steel. Springs are of high grade spring steel.
SCEC Approved The MS2602 mortice lock has been certified to comply with the SL3 rating from SCEC.
Security dormakaba MS2602 lock conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2·2008.
Durability dormakaba MS2602 mortice lock conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2·2008.
Strikes Universal "T" shape strike plate as standard.
Cylinder Standard 570 type oval shaped cylinder (refer to cam options for functions). Cylinders are not supplied as standard.
Anti-Lockout (Kick Off) This function is built into the MS2602 Mortice Lock and can be easily activated or de-activated. Primary lock is supplied de-activated; refer to functions for further information.
Hold Back The MS2602 offers a latch hold back function via a 130 cylinder with a hold back cam (CAM KH) ordered separately, with or without cylinder.
Rebate Kits Rebate kits are available as accessory to convert the MS2602 Mortice Lock into a rebated unit.
Fabricator Kits Fabricator kits are available as an accessory to accommodate installation on metal/aluminium doors and frames.
Electric Strikes The Kaba MS2602 lock is compatible with most common electric strikes.
Backset Standard 60 mm backset
Door Thickness 32 mm to 50 mm as standard. Thicker door kits are available on application.
Door Preparation The MS2602 lock fits a standard 120 mm x 90 mm x 20 mm (175 mm x 25 mm faceplate) mortice.
Latchbolt 14 mm latchbolt. including a separate auxiliary dead latch with a 8 mm projection
Door Gap To facilitate latch retraction and maintain lock security the gap between the faceplate and the strike plate should not be less than 3 mm or greater than 6.0 mm.
Note: Fire doors require a 3 mm gap to meet AS1905.1
