dormakaba Short Backset Commercial Mortice Lock

The ideal solution for new fitouts or retro fits, the dormakaba SB2200 and SB2300 Series range are designed, engineered and built for optimal performance across a full range of applications including education, healthcare, office, retail, municipal buildings and residential projects.

Get in touch Or call us on 03 365 0298
SKU 10534

These premium performance short backset locks are built with a zinc die cast chassis and stainless-steel face plate.

An adjustable locking bar provides a wide variety of lock functions (independent to each side of the door), ensuring the dormakaba SB2200 and SB2300 series narrow stile mortice locks will have the right function to meet your hardware specification requirements.

The ideal solution for new fitouts or retro fits, the dormakaba SB2200 and SB2300 Series range are designed, engineered and built for optimal performance across a full range of applications including education, healthcare, office, retail, municipal buildings and residential projects.

Construction: Case and cover are constructed of zinc alloy and painted to a metallic silver finish. Faceplate and strike plate are constructed of high quality 304 grade stainless steel. Latchbolt and auxiliary latch are constructed of high grade sintered stainless steel. Springs are of high grade spring steel.

Handing and Functions: The SB2200 and SB2300 series locks are non-handed to suit left hand or right hand inswing or outswing doors and functions are easily changeable on site.

Strikes: Universal “T” shape strike plate with radius corners as standard. For convenience the SB2200 and SB2300 series is supplied with a fabricator strike box to suit steel/aluminium frames as standard.

Cylinder: Standard 570 type oval shaped cylinder (refer to cam options for functions). Cylinders are not supplied as standard.

Hold Back: The SB2200 and SB2300 Series (locking) offers an optional latch hold back function via a dormakaba 570 cylinder with a hold back cam (ordered separately).

Furniture: Suitable for use with the dormakaba narrow stile door furniture range.

Timber Doors: Timber doors can be applied with the use of the SB260 Extended face plate.

Electric Strikes: The dormakaba SB2200 and SB2300 Series is compatible with most common electric strikes.

Backset: 23 mm and 30 mm backsets are available.

Door Thickness: 32 mm to 50 mm as standard. Thicker door kits are available on application.

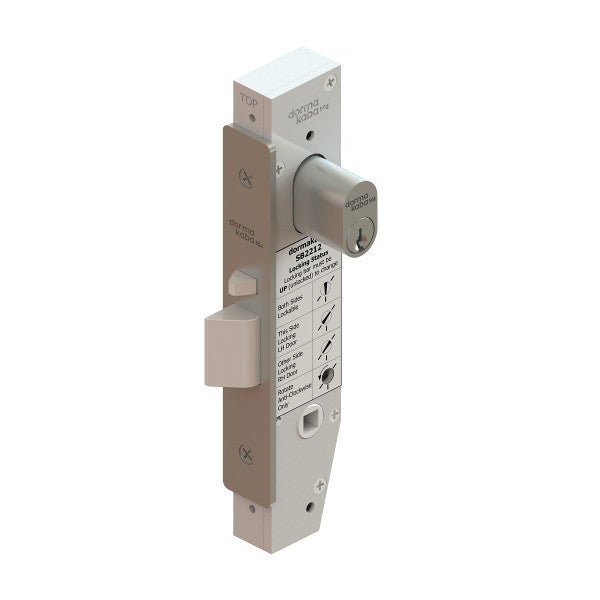

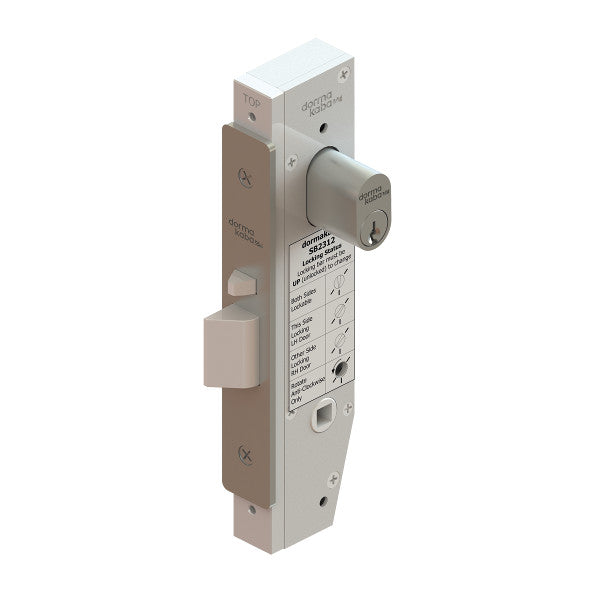

Door Preparation: The SB2212 23 mm backset lock suits hollow aluminium extrusion with a 37 mm minimum internal depth. The SB2312 30 mm backset lock suits hollow aluminium extrusion with a 44 mm minimum internal depth.

Latchbolt: 15 mm latchbolt, including a separate auxiliary deadlatch with a 8 mm projection.

Door Gap: To facilitate latch retraction and maintain lock security the gap between the faceplate and the strike plate should not be less than 2.5 mm or greater than 4.0 mm.
