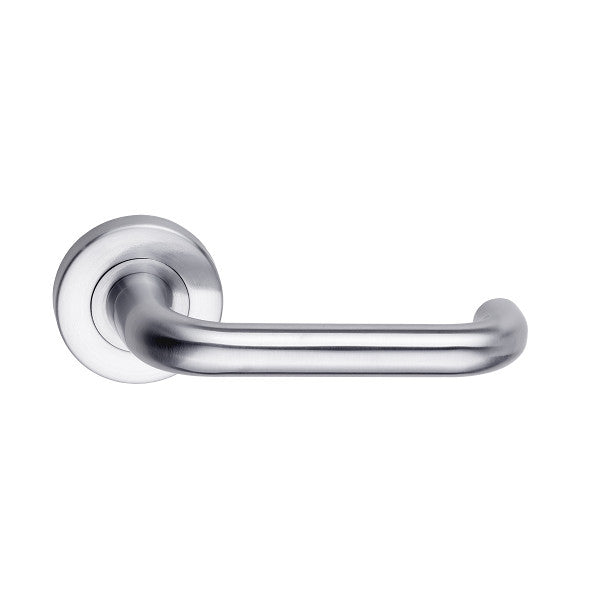

dormakaba's Vision Range is the perfect fusion of innovative engineering, eye-catching design and durability. Technically superior, an ideal upgrade for customers looking for quality door hardware with an edge. Produced to meet the aesthetics of the multi-residential, light commercial and institutional building market.
- 53 mm or 65 mm diameter rose, 10 mm thick with 41 mm fixing centres
- Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern
- Non-handed rose and reversable levers
- Fire rated and complies with AS1905.1
- Compies with AS1428.1 2009 standard for disable access
Rose Dimensions:
- Dimensions: 62.5 mm x 11.6 mm
- Fixing centres: 51 mm
Lever Dimensions:
- Length: 121 mm
- Projection: 53 mm
- Finger clearance: 37 mm
Materials:
- All Lockwood roses and levers contained in the series are of solid brass construction
Handing:
- Plates are not handed; Symmetrical levers may be reversed by removing stop screw
Fixing:
- Roses are designed to fit back to back. If outside rose is specified with concealed fixing, then the inside rose must be visible fixed
- The 1370 Series rose furniture features a 62 mm solid brass rose with diagonal screw fixings, concealed on the outside and visible on the inside
Door Thickness:
- 32 mm minimum for Lockwood 3770 Selector and 3570 Synergy series mortice latches
- 50 mm maximum door thickness
