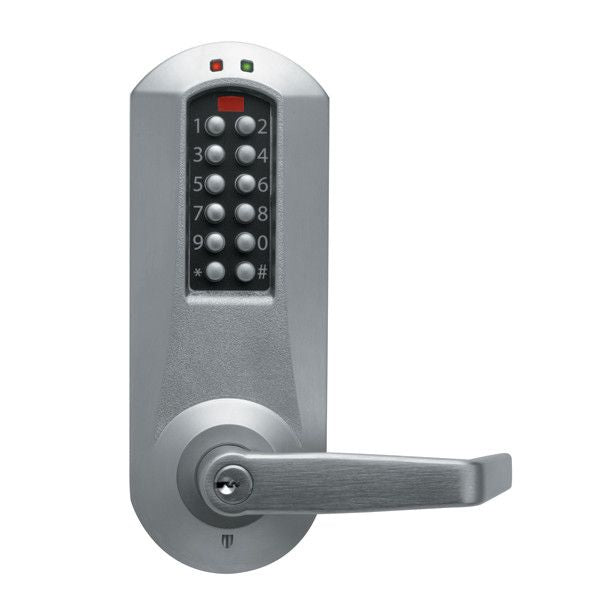

E-Plex 5000 Electronic Pushbutton Lock

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress.

Get in touch Or call us on 03 365 0298
SKU 8845

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

Authority Levels:

  • Master Level – Performs all set-up and programming functions
  • Manager Level – Administers common programming functions
  • Access User Level – Entry granted with valid PIN
  • Service Level – Codes for single event or single day access, programmable in advance
  • Maintenance Level – No access is granted, but information can be uploaded/downloaded to/from the lock

  • Number of Codes: Multiple Users – 100 Codes; upgrades to 300 Codes with optional software
  • Locking Device Options: Cylindrical latch or Mortice lock
  • Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events. (Optional software programming requires PC M-Unit kit – purchased separately)
  • Programming: Locks are programmed via keypad or with optional Microsoft Excel-based software – simplifies management of doors and users as facility’s number of users and accesspoints grow
  • Handing: Non-handed, pre-assembled for left-hand door installations – easily changed in the field
  • Operation Modes: PIN access, Lockout, or Passage – can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)
  • Code length: Adjustable to accept 4 to 8 digits
  • Anti-tamper lockout: Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Relock time: Adjustable from 2 to 20 seconds
  • Ease of Installation: No wire installation – eliminates wiring to or through the door – no risk of pinched wires
