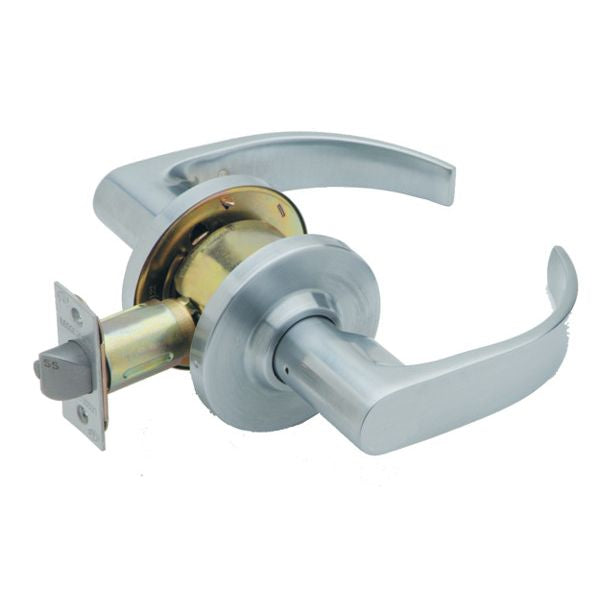

Legge G2 Neptune Passage Leverset

The G2 Series is available in a variety of keyed and non-keyed functions. With functions privacy, entrance, passage, classroom, storeroom and dummy, this series is ideally suited for commercial exterior and interior doors.

Get in touch Or call us on 03 365 0298
SKU 13803

The Legge G2 keyed lever lock design has been based around the successful Schlage AL Series cylindrical lockset. The G2 Series is available in a variety of keyed and non-keyed functions. With functions privacy, entrance, passage, classroom, storeroom and dummy, this series is ideally suited for commercial exterior and interior doors.

Tested to over 400,000 cycles the Sparta lever (patent pending) is unique in its 35 mm to 45 mm clearance. Compliant to the AS1428:1-2009 Disability Code this product is a must for health and aged care facilities and suitable for most commercial projects.

  • Door thickness = 35 mm – 50 mm, or 45 mm - 60 mm
  • Material = Exposed trim: wrought brass. Levers: pressure cast zinc
  • Handing = Reversible
  • Backset = 70 mm Standard, also available in 60 mm and 127 mm
  • Latchbolt = 13 mm cast stainless steel latch
  • Cylinder = 6 pin tumbler Schlage ‘C4’ keyway
  • Inside and outside lever always free
