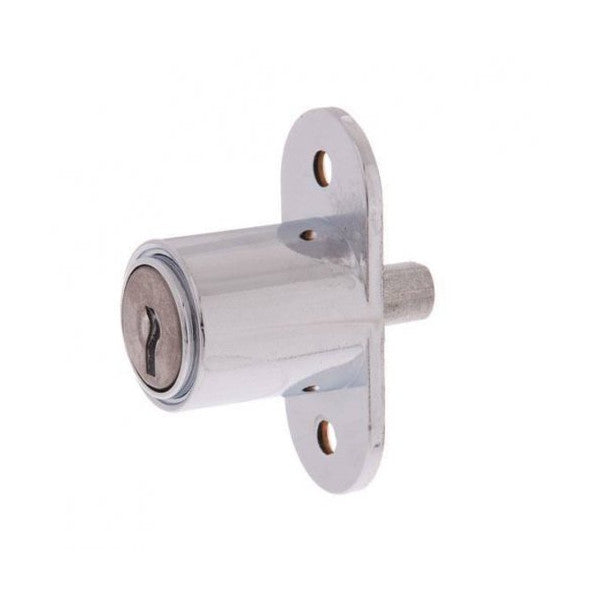

This lock is ideal for use on sliding cabinet drawers.

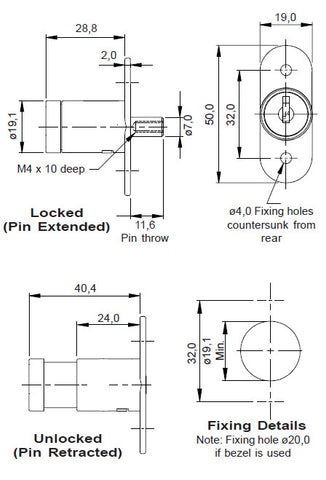

Pushing the barrel in results in a 7 mm diameter pin extending from the back of the lock (note: no key is required when locking). To retract the pin, insert a key and turn 45º clockwise. The barrel and pin, being spring-loaded, will pop out. The lock fits into a 19 mm diameter hole from the rear of a panel.
