By Yale

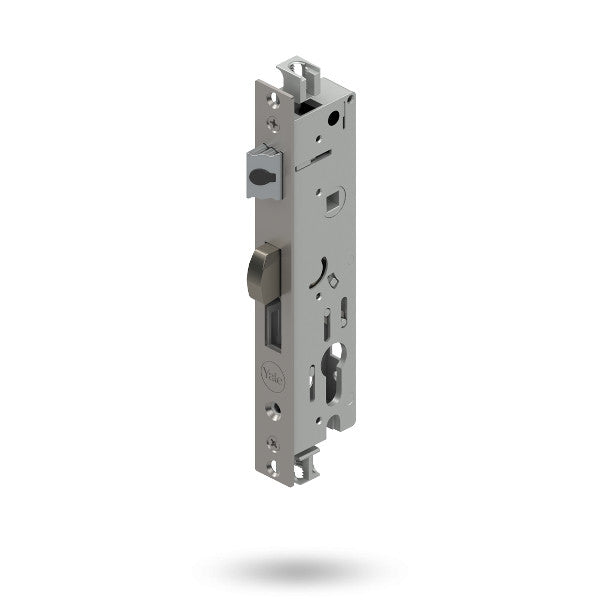

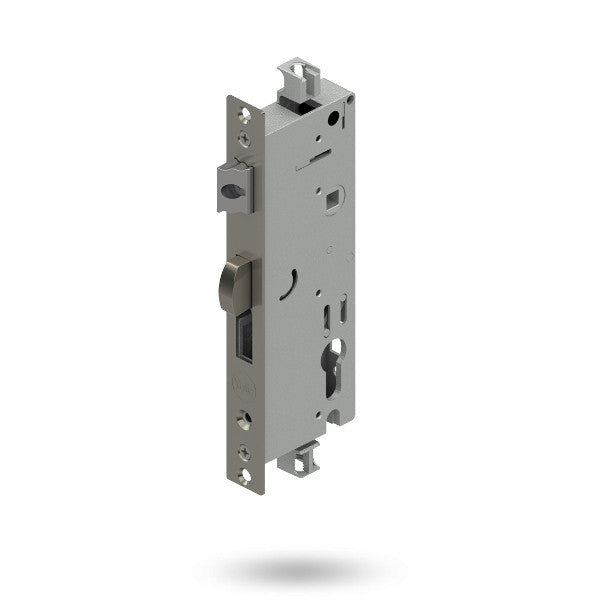

Yale Optimum 4 Point Lockset

The Optimum 4-Point provides increased security with up to four point of locking.

Get in touch Or call us on 03 365 0298
SKU 11166

The Optimum 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Optimum 2-Point provides increased security with up to four point of locking. The shootbolt provides added security and seal compression, designed specifically for the New Zealand environment.

Designed to be used in conjunction with the Verona and Palladium furniture ranges.

  • Features 4 points of locking from the latch and deadbolt
  • Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
  • The handing of the lockset is adjusted by reversing the orientation of the latch bolt
  • Stainless steel forend plate
  • Adjustable latch projection
  • Latch wear insert included
  • Achieves Australian Standards AS4145: 1993 (Part 2) Security Level S2 and Durability Level D2
  • Accepts Euro style cylinders
  • When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
  • New Zealand made

  • Locking Points: 4
  • Bolt Material: Zinc
  • 30, 40, or 50 mm backset
  • 85 mm pitch
  • 13 mm, or 24 mm throw on deadbolt
  • Body / Case Material: Zinc
  • Door Material: Aluminium
  • Multipoint Type: Rods
  • Door Thickness Range: 35-41 mm
